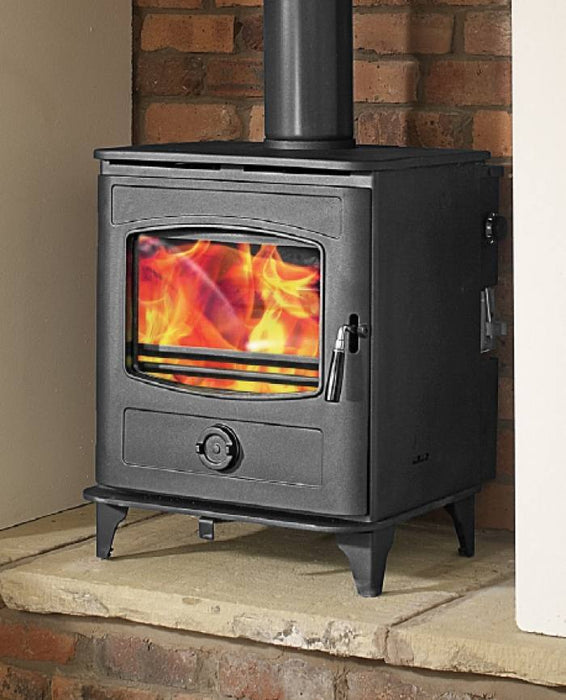

The family-sized Graphite Boiler will easily heat up to 10 radiators, plus provide more than enough heat for the room its located in, as well as a generous supply of hot water. Its big fire chamber will take large logs up to 400 mm (16) long or a large 4kg smokeless fuel load to extend the burn times. The baffle plate and boiler top area can be inspected and simply cleaned through a special hatch underneath the heavy duty heat-sink lid (a staggering 26kg!) without having to remove the flue pipe. Top or rear flue options and an external riddler are just some of the Graphites many features.
- Powers up to 10 average-sized radiators and the room its in
- CE EN13240 tested in the UK by Kiwa Gastec
- SEAI Harp approved and listed, your performance guarantee
- Incorporates Airwash technology to keep your glass cleaner
- Thermostatically controlled boiler maximises fuel efficiency
- Longer-lasting fine cast iron door and 16 mm thick steel lid
- Easy to clean baffle plate and top boiler area
- Five Year Extended Warranty from one of the worlds leading stove makers
Specification
| Total Output | 14.5kW |
| -To Water -To Air |
9.6kW 4.9kW |
| Efficiency | 74.9% (Net) |
| Airwash System | Pre-heated |
| Construction | Steel & cast iron |
| Flue Outlet | Top only |
| Flue Size | 150mm/6" |
| Flue Type | Open |
| Grate Type | Multi-fuel |
| Guarantee | 5 Years |
| Defra Approved | No |
| Additional Finishes | None |
| Ideal Log Length | Up to 40cm |
| Weight | - |
| Air Vent Required | Yes |
| Direct Air | Yes (Secondary and Tertiary only) |
Dimensions
Coming Soon
